Undersea Tunnel: Types, Advantages, Challenges, and Notable Examples

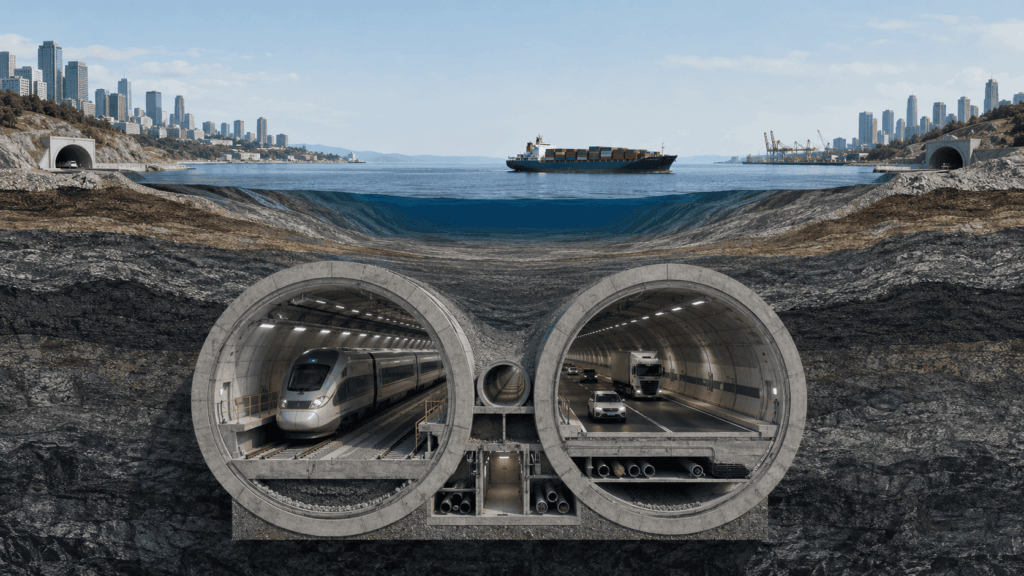

An undersea tunnel is a transportation or utility passage built beneath the seabed to connect places separated by a sea, strait, bay, or coastal channel. Depending on its design, it may carry passenger trains, freight rail, cars, buses, maintenance vehicles, pipelines, cables, or other essential services. These tunnels are typically chosen where a bridge would interfere with shipping lanes, require excessively tall approaches, or create major visual and environmental impacts, and where ferry service would be too slow, weather-dependent, or limited in capacity.

The term undersea tunnel usually refers specifically to a structure constructed below the sea or seabed. Underwater tunnel is broader and may also describe tunnels beneath rivers, harbors, estuaries, and lakes. Although the terms are often used interchangeably, the distinction helps clarify the setting of a project. In practice, the feasibility of an undersea tunnel depends on geology, water depth, route length, traffic demand, construction technology, and the long-term cost of operation and maintenance.

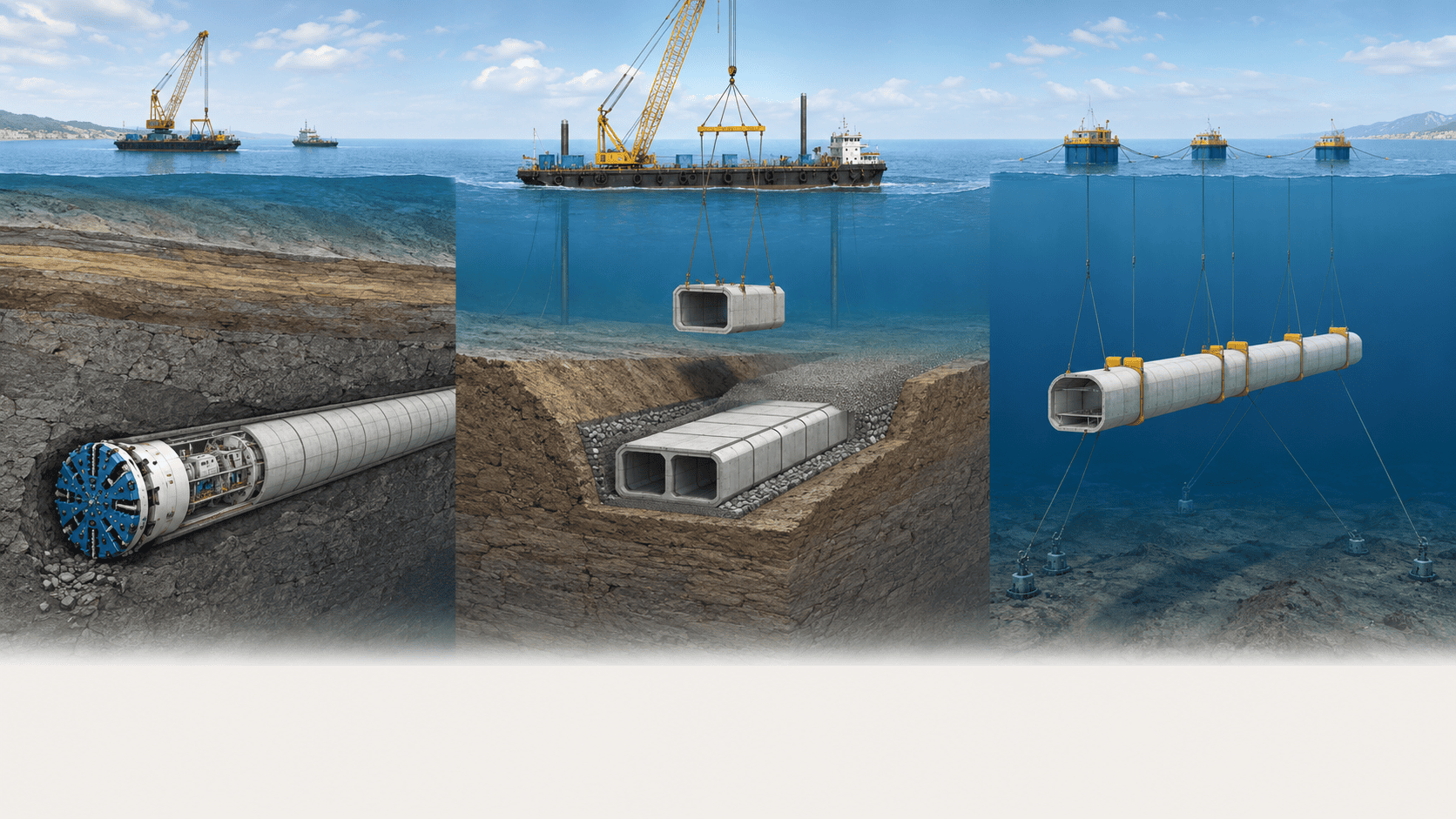

Types of Undersea Tunnels

Undersea tunnels are generally classified by how they are built and supported. The choice depends on water depth, geology, crossing length, navigation requirements, environmental constraints, and the type of traffic the tunnel must carry.

Bored Tunnels

Bored tunnels are excavated through rock or soil beneath the seabed. Modern projects commonly use tunnel boring machines, or TBMs, which cut through the ground while installing prefabricated lining segments behind the excavation face. These segments form a strong, watertight shell that resists groundwater pressure and protects the tunnel over its operating life.

Where the geology is too hard, fractured, or irregular for continuous machine excavation, engineers may use drilling and controlled blasting. Bored tunnels are well suited to deep or long crossings because they can pass below shipping channels without disturbing the seabed directly. The Seikan Tunnel in Japan and the Channel Tunnel between the United Kingdom and France are major examples of undersea tunnels built through excavation below the sea floor.

Immersed Tube Tunnels

Immersed tube tunnels are assembled from large prefabricated sections, usually made of reinforced concrete or steel. Each section is built in a dry dock, sealed temporarily, and floated to the crossing site. Engineers excavate a trench in the seabed, lower the sections into position, connect them underwater, and seal the joints.

Once installation is complete, the tunnel is covered with protective material to stabilize it and shield it from anchors, currents, and other external forces. This method is often used in relatively shallow bays, harbors, rivers, and coastal channels, especially where direct access from both shores is practical.

Submerged Floating Tunnels

A submerged floating tunnel would be suspended within the water rather than buried beneath the seabed. Buoyancy would support the structure, while cables, seabed anchors, or pontoons would hold it in a stable position.

This concept could reduce the need for deep excavation in fjords or very deep waters, where conventional tunnels or bridges may be difficult to build. Unlike bored and immersed tube tunnels, however, submerged floating tunnels remain largely conceptual. Their design must account for waves, currents, vessel impacts, structural movement, maintenance access, and long-term safety before widespread construction becomes practical.

Advantages of Undersea Tunnels

Undersea tunnels can provide a more reliable and less intrusive crossing than bridges or ferries when navigation, weather, urban development, or transport capacity are major concerns.

Compared With Bridges

An undersea tunnel keeps shipping lanes fully open because vessels can pass above the route without clearance restrictions. Bridges across busy waterways often require tall towers, long approach spans, or movable sections to allow large ships through. Those features can increase construction complexity, occupy valuable waterfront land, and create visual barriers in coastal cities.

Tunnels are also less exposed to strong winds, storms, and icing, which can disrupt bridge traffic or require temporary closures. Because the structure remains below the water and surrounding landscape, it can reduce visual impact and avoid elevated roadways near residential districts, airports, and ports. This makes an undersea tunnel especially useful where bridge height could interfere with aircraft operations or where fixed spans would restrict navigation.

Compared With Ferry Links

A tunnel creates a permanent connection rather than a scheduled service. Cars, trains, or freight can move through it continuously, without waiting for a vessel to arrive, load, cross, and unload. This reduces delays and supports more frequent, predictable travel.

Undersea tunnels are generally less dependent on rough seas, fog, high winds, and tidal conditions than ferry operations. They can also connect directly with existing highways or rail networks, improving capacity and making transfers unnecessary. For heavily traveled corridors, this continuous flow can support commuting, freight movement, and regional trade more efficiently than a ferry system.

Although construction requires a major initial investment, a tunnel can provide a high-capacity fixed link for decades where traffic demand is strong enough to justify it.

Disadvantages and Engineering Challenges

Despite their operational benefits, undersea tunnels are among the most demanding transport structures to plan, build, and maintain.

Compared With Bridges

A tunnel requires extensive geological and geotechnical investigations before construction can begin. Engineers must identify weak rock, fault zones, unstable sediments, groundwater pathways, and other conditions that could threaten excavation. If the geology is unsuitable, costs can rise sharply or the route may need to change.

Underground construction also limits access to the work area and makes emergencies more difficult to manage. Ventilation, drainage, lighting, fire protection, communications, and evacuation systems must operate continuously. Repairs are often slower and more disruptive than on a bridge because damaged components may be difficult to reach. These factors can result in longer construction schedules and higher technical risk.

Compared With Ferry Links

An undersea tunnel requires far greater initial investment than a ferry service. It may take years of studies, approvals, financing, and construction before the crossing opens. Once built, the route cannot be relocated if travel patterns or economic conditions change.

This lack of flexibility creates financial risk when projected traffic fails to materialize. Operators must also fund specialized maintenance, inspections, pumping systems, control centers, and emergency services throughout the tunnel’s life. A ferry route, by contrast, can often be expanded, reduced, or redirected more easily.

Water Pressure, Ventilation, and Emergency Safety

Hydrostatic pressure—the force exerted by surrounding water—increases with depth and places continuous stress on linings, joints, and seals. Water infiltration through fractures or construction joints must be controlled by waterproof barriers, drainage channels, and pumping stations.

Fault zones, soft ground, and seismic activity can complicate both excavation and long-term stability. In road tunnels, ventilation systems must remove vehicle emissions during normal operation and smoke during a fire. Safe evacuation may require cross-passages, protected service tunnels, emergency exits, and clearly separated escape routes.

Continuous monitoring is also essential. Sensors can detect structural movement, leakage, equipment failure, or unusual pressure changes. Corrosion caused by moisture and salt exposure adds another long-term challenge, particularly for steel components, electrical systems, and ventilation equipment.

List of Notable Undersea Tunnels

Undersea tunnels carry road traffic, passenger and freight trains, utilities, or combinations of these uses. Their dimensions are not always directly comparable: a published “total length” may include land approaches, while the undersea length covers only the portion beneath the water or seabed. Depth figures may also refer to distance below the water surface, sea level, or seabed. The table separates these measurements where reliable figures are commonly available; a dash indicates that a consistent separate value is not widely reported.

Tunnel	Location	Body of Water	Primary Use	Construction Type	Total Length	Undersea Length	Maximum Depth	Opened	Why It Is Notable
Thames Tunnel	London, England	River Thames	Rail, originally pedestrian	Shield-bored	0.40 km	—	—	1843	First completed tunnel beneath a navigable river.
Mersey Railway Tunnel	Liverpool–Birkenhead, England	River Mersey	Rail	Bored	1.21 km	—	—	1886	One of the earliest underwater railway tunnels.
Severn Tunnel	England–Wales	Severn Estuary	Rail	Bored	7.01 km	—	—	1886	Major early rail link beneath a tidal estuary.
Blackwall Tunnel, northbound	London, England	River Thames	Road	Shield-bored	1.35 km	—	—	1897	Among the earliest underwater road tunnels.
Old Elbe Tunnel	Hamburg, Germany	River Elbe	Road and pedestrian	Shield-bored	0.43 km	—	24 m	1911	Pioneering vehicle and pedestrian crossing with elevators.
Holland Tunnel	New York–New Jersey, U.S.	Hudson River	Road	Shield-bored	2.60 km	—	28.3 m	1927	First long road tunnel with mechanical ventilation.
Detroit–Windsor Tunnel	Michigan–Ontario	Detroit River	Road	Immersed tube	1.57 km	—	13.7 m	1930	International road connection between the United States and Canada.
Queensway Tunnel	Liverpool–Birkenhead, England	River Mersey	Road	Bored	3.24 km	—	—	1934	World’s longest road tunnel when completed.
Bankhead Tunnel	Mobile, Alabama, U.S.	Mobile River	Road	Immersed tube	1.03 km	—	12.2 m	1941	Includes flood-control doors for storm protection.
Kanmon Railway Tunnel	Honshu–Kyushu, Japan	Kanmon Straits	Rail	Bored	3.60 km	—	—	1942	Japan’s first undersea railway tunnel.
Lincoln Tunnel	New York–New Jersey, U.S.	Hudson River	Road	Shield-bored	2.40 km average	—	30 m	1937–1957	Three-tube crossing built in successive stages.
Kanmon Roadway Tunnel	Honshu–Kyushu, Japan	Kanmon Straits	Road and pedestrian	Bored	3.46 km	—	58 m	1958	Once the world’s longest undersea road tunnel.
George Massey Tunnel	British Columbia, Canada	Fraser River	Road	Immersed tube	0.63 km	—	23 m	1959	First immersed-tube tunnel built in British Columbia.
Chesapeake Bay Bridge–Tunnel	Virginia, U.S.	Chesapeake Bay	Road	Immersed tubes	1.6 km per tunnel	3.2 km combined	—	1964	Combines bridges, artificial islands, and two tunnels.
Muskö Tunnel	Muskö, Sweden	Baltic coastal waters	Road	Drill-and-blast	2.90 km	—	65 m	1964	Connected a strategically important island to the mainland.
Transbay Tube	San Francisco–Oakland, U.S.	San Francisco Bay	Metro rail	Immersed tube	5.80 km	5.80 km	41 m	Long underwater rapid-transit tube carrying BART trains.
Cross-Harbour Tunnel	Hong Kong	Victoria Harbour	Road	Immersed tube	1.86 km	—	—	1972	Hong Kong’s first fixed road crossing beneath the harbor.
Vardø Tunnel	Vardø, Norway	Bussesundet	Road	Drill-and-blast	2.89 km	—	88 m	1982	Norway’s first undersea road tunnel.
Seikan Tunnel	Honshu–Hokkaido, Japan	Tsugaru Strait	Rail	Drill-and-blast	53.85 km	23.30 km	240 m	Longest tunnel overall with a major undersea section.
Sydney Harbour Tunnel	Sydney, Australia	Sydney Harbour	Road	Immersed tube	2.80 km	—	—	1992	Added a second major road crossing beside the harbor bridge.
Byfjord Tunnel	Stavanger, Norway	Byfjorden	Road	Drill-and-blast	5.88 km	—	223 m	Set a road-tunnel depth record when opened.
Channel Tunnel	England–France	English Channel	Rail	TBM-bored	50.45 km	About 37 km	About 115 m	1994	World’s longest continuous undersea railway section.
Hitra Tunnel	Trøndelag, Norway	Trondheimsleia	Road	Drill-and-blast	5.65 km	—	264 m	Deepest undersea road tunnel at its opening.
Tokyo Bay Aqua-Line Tunnel	Kawasaki, Japan	Tokyo Bay	Road	Shield-bored	9.6 km	About 9.6 km	About 60 m	1997	Forms the tunnel half of a bridge–tunnel expressway.
Great Belt Railway Tunnel	Zealand–Sprogø, Denmark	Great Belt	Rail	TBM-bored	8.02 km	—	80 m	Rail component of Denmark’s Great Belt fixed link.
North Cape Tunnel	Magerøya, Norway	Magerøysundet	Road	Drill-and-blast	6.87 km	—	212 m	Provides year-round road access toward North Cape.
Bømlafjord Tunnel	Vestland, Norway	Bømlafjorden	Road	Drill-and-blast	7.89 km	—	260 m	Deep subsea section of the Triangle Link.
Eiksund Tunnel	Møre og Romsdal, Norway	Eiksund Strait	Road	Drill-and-blast	7.77 km	—	287 m	Former world depth record holder for road tunnels.
Busan–Geoje Fixed Link Tunnel	Busan–Geoje, South Korea	Geoje Strait	Road	Immersed tube	3.70 km	3.70 km	48 m	Exceptionally deep immersed-tube crossing.
Qingdao Jiaozhou Bay Tunnel	Qingdao, China	Jiaozhou Bay	Road	Drill-and-blast	7.81 km	—	84 m	Major highway connection beneath Jiaozhou Bay.
Marmaray Tunnel	Istanbul, Turkey	Bosphorus	Rail	Immersed tube and bored	13.6 km	1.39 km	About 60 m	2013	Rail link joining Europe and Asia beneath the Bosphorus.
Marina Coastal Expressway Tunnel	Singapore	Marina Bay	Road	Cut-and-cover and immersed works	5.0 km	—	—	2013	Singapore’s first road tunnel extending beneath the seabed.
Port of Miami Tunnel	Miami, Florida, U.S.	Government Cut	Road	TBM-bored	2.1 km	—	About 37 m	2014	Diverts port trucks away from downtown streets.
Eurasia Tunnel	Istanbul, Turkey	Bosphorus	Road	TBM-bored	5.4 km	3.34 km	106 m	First highway tunnel directly linking Europe and Asia.
Hong Kong–Zhuhai–Macau Tunnel	Pearl River estuary, China	Lingding Channel	Road	Immersed tube	6.7 km	6.7 km	About 44 m	Tunnel section of a 55-km bridge–island fixed link.
Ryfylke Tunnel	Stavanger–Ryfylke, Norway	Høgsfjorden area	Road	Drill-and-blast	14.3 km	—	292 m	Longest undersea road tunnel currently in service.
Eysturoy Tunnel	Faroe Islands	Tangafjørður	Road	Drill-and-blast	11.24 km	—	187 m	Features the world’s first undersea traffic roundabout.
Boryeong Undersea Tunnel	Boryeong, South Korea	Yellow Sea	Road	Drill-and-blast	6.93 km	—	80 m	South Korea’s longest undersea road tunnel.
East–West Metro River Tunnel	Kolkata–Howrah, India	Hooghly River	Metro rail	TBM-bored	0.52 km underwater	0.52 km	About 30 m	India’s first operational underwater metro crossing.
Bangabandhu Tunnel	Chattogram, Bangladesh	Karnaphuli River	Road	TBM-bored	3.32 km	—	18–31 m	2023	First underwater road tunnel in South Asia.
Sandoy Tunnel	Faroe Islands	Skopunarfjørður	Road	Drill-and-blast	10.8 km	—	155 m	2023	Extended the Faroese fixed-link road network to Sandoy.
Silvertown Tunnel	London, England	River Thames	Road and bus	TBM-bored	1.4 km	—	—	2025	Added capacity beside the Blackwall Tunnel.

The table reflects tunnels with different engineering purposes and measurement conventions; its length and depth figures should therefore be compared within the stated categories rather than treated as a single ranking.

Seikan Tunnel

The Seikan Tunnel connects Japan’s main island of Honshu with Hokkaido beneath the Tsugaru Strait. Its 53.85-kilometer route includes 23.3 kilometers below the strait, reaching about 240 meters below the water surface. Engineers relied largely on drilling and blasting because fractured volcanic rock and heavy water inflows made excavation exceptionally difficult. The railway opened in 1988 after decades of investigation and construction. Seikan remains longer overall than the Channel Tunnel, although its undersea section is shorter than the Channel Tunnel’s continuous marine passage.

Channel Tunnel

The Channel Tunnel links Folkestone, England, with Coquelles, France. Each route is approximately 50 kilometers long, with about 37 kilometers beneath the English Channel and an average alignment roughly 40 meters below the seabed. The system contains two rail tunnels and a smaller service tunnel used for maintenance and emergencies. Tunnel boring machines excavated from both countries until the headings met beneath the Channel. Since opening in 1994, the link has carried passenger trains, freight trains, and shuttle services transporting road vehicles, giving it the world’s longest continuous undersea railway section.

Tokyo Bay Tunnel

The Tokyo Bay Tunnel forms the western portion of the Tokyo Bay Aqua-Line, a road link between Kawasaki and Kisarazu. The route combines approximately 9.6 kilometers of tunnel, an artificial island, and a 4.4-kilometer bridge. Shield machines excavated through soft marine ground under high water pressure, while the artificial island provided ventilation and a transition point between the tunnel and bridge. Opened in 1997 after roughly nine years of construction, the Aqua-Line substantially shortened the highway journey around Tokyo Bay and demonstrated how a bridge–tunnel system can adapt to navigation and geological constraints.

Proposed Undersea Tunnels

Future undersea tunnel projects range from active construction to long-term concepts that still require technical, environmental, or financial approval. Their status can change quickly, so projected dates remain provisional.

Road Tunnel Projects

Norway’s E39 Rogfast is under construction between Randaberg and Bokn. The approximately 27-kilometer tunnel will become the world’s longest and deepest undersea road tunnel and is intended to replace ferry crossings along the E39 coastal route. The Norwegian Public Roads Administration currently expects it to open in 2033.

The 18-kilometer Fehmarnbelt Tunnel between Denmark and Germany is also under construction. It will carry a motorway and railway through an immersed-tube structure. Construction began in 2020 on the Danish side and 2021 on the German side. Because of delays, the road connection is now expected to open before the railway, and a revised schedule has not yet been published.

Rail Tunnel Projects

The proposed Helsinki–Tallinn rail tunnel remains in planning and design rather than approved construction. It is intended to connect Finland with Estonia and the wider Rail Baltica network beneath the Gulf of Finland.

A fixed rail link beneath the Strait of Gibraltar remains under feasibility study. Spain and Morocco continue updating technical work for a possible tunnel between Europe and Africa, but no construction date has been confirmed.

An undersea tunnel creates a permanent connection beneath a body of water where bridges or ferry services may be impractical. It can support road, rail, freight, or utility networks while preserving navigation above. Its viability depends on geology, water depth, traffic demand, environmental constraints, financing, and long-term safety requirements. Because construction must control pressure, groundwater, ventilation, structural movement, and emergency access, these tunnels remain among the most technically complex infrastructure projects.
